Product Used – i-MP-WP-SQ
iKOE Series, Multi-portal, Waterproof Membrane, Square Profile.
Size – 10m width x 4.5m span
Membrane – Italian made waterproof membrane, complete with a 10yr. warranty and coloured in black satin membrane
Coatings – Blasted, Primed & Powder coated in Dulux Surreal Effects in Colour Mannex Black.
Installation Type – Micropile in-ground concrete free footing

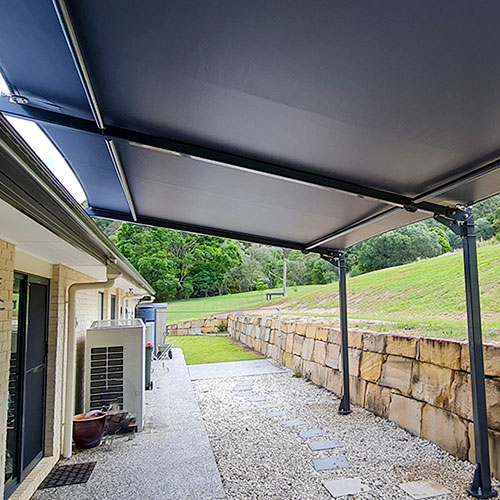

Requiring protection from the elements for their new caravan, after iterating with our designers, whilst a traditional shade sail connected to the roof was the initial idea, it quickly became apparent that due to the limited space at the side of their home, the cantilever structure was going to be the best solution for the space.
A pivotal part of the design process was their need for complete coverage to the entire site boundary to create a multi-functional space that might double as a storage zone for future assets. Therefore, we selected a 4.5-metre span to overlap with the home’s existing roofline. In addition, overlaying the roof provides complete protection from water, hail, and sun.
The couple opted for the iKOE square, a modern, streamlined profile to fit the existing look and feel.
Caravan covered structures are becoming more and more in demand of the KOEDN cantilever structures due to the added height requirements and limited space available for parking. The iKOE range, in particular, offers many lengths and spans for a customised fit to position in almost any environment.
Fitted with Grade 250 Australian mild structural steel, iKOE’s high strength, non-corrosive, marine-grade stainless steel fittings, coupled with heavy-duty bolt track and 315 stainless steel custom swage cables, creates a truly lasting and durable and timeless structure.
Modiform’s talented project team installed the caravan shade structure using state-of-the-art ground penetrating removable, concrete-free footing systems designed for minimal ground disturbance.
